Dokument Scanner Panasonic KV-S1027C
  T/F: 011 2120598   E-mail: pbx@vektor.net

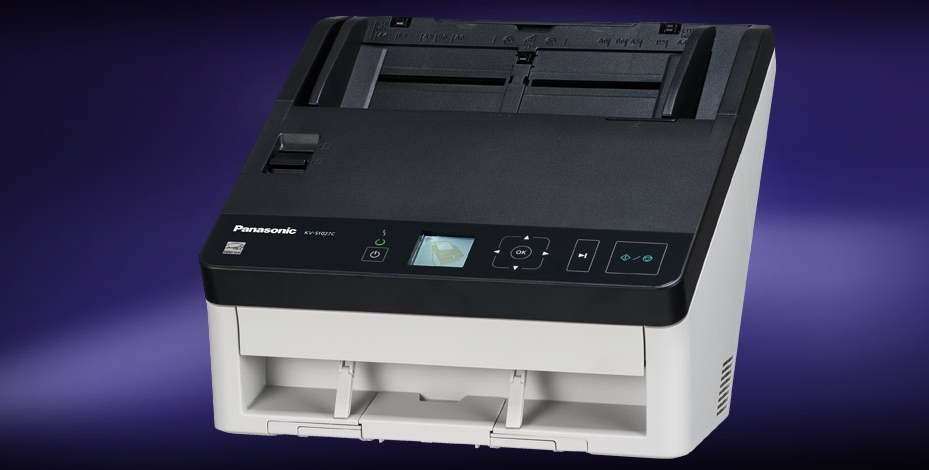

Skener za dokumente Panasonic KV-S1027C

CENA Uplate samo preko računa.
Skener Panasonic za dokumente KV-S1027C

High-speed A4 skener za obradu skeniranih dokumenata.

Katalog za Panasonic KV-S1027C, preuzmite.
Scanning Face
Duplex scanning
Scanning Method
Color CIS (600 dpi) / Black or White Background
Scanning Resolution
100 – 600 dpi (1 dpi step)
1,200 dpi (Interpolated)
Optical: 300 dpi / 600 dpi (Automatic switch)
Binary Speed* 1
Portrait, 200 / 300 dpi
Letter
Simplex
45 ppm
Duplex
90 ipm
A4
Simplex
45 ppm
Duplex
90 ipm
Color Speed* 1
Portrait, 200 / 300 dpi
Letter
Simplex
45 ppm
Duplex
90 ipm
A4
Simplex
45 ppm
Duplex
90 ipm
Feed Tray capacity
Up to 100 sheets 80 g/m 2 (21 lbs., A4 or Letter)
3 hard cards (ISO 7810 ID-1)
Up to 75 sheets 80 g/?(21 lbs., less than 100 mm length paper and Legal size)
Other Functions
• Length Control
• Control sheet
• Patch code detection (Type 2, 3, T)
• Long paper mode
• Double Feed Skip
Internal Video Processing
1,024 levels (10-bit)
Tonal Gradation (Bitonal Mode)
Dither, Error diffusion, Grayscale (8 bit), Binary
Image Compression
MH, MMR, JPG
Paper Size* 2
Minimum
48 mm x 54 mm (1.9 in. x 2.1 in.)
Maximum
216 mm x 5,588 mm (8.5 in. x 220 in.)
Max. Scanning Page Size
216 mm x 5,588 mm (8.5 in. x 220 in.)* 3
Paper Thickness
Note: 1 mil = 1/1000 in.
Single Feed
0.04 to 0.5 mm (1.6 to 19.7 mils)
Continuous Feed
0.04 to 0.5 mm (1.6 to 19.7 mils)
Business Card
Card: Up to approx. 0.76 mm (30.0 mils) in thickness + embossing
(ISO standard 7810 ID-1 card scanning including embossed card)
Single Feed mode using Strait Path
Paper Weight* 4
Single Feed
20 to 413 g/m 2 (5.4 to 110 lbs.)
Interface
USB 3.0 / 2.0
General

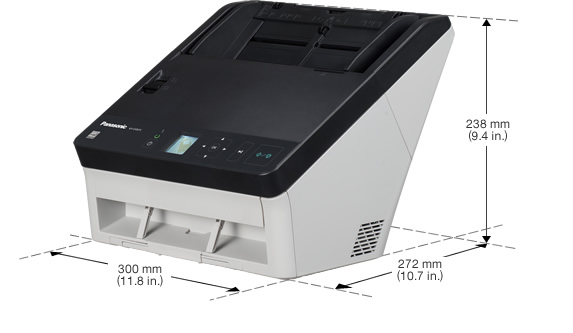

Dimensions (W x D x H)
300 x 272 x 238 mm (11.8 x 10.7 x 9.4 in.)
When the exit tray is closed
Weight
4.0 kg (8.8 lbs.)
Power Requirement* 5
AC100 - 125 V 50/60 Hz 0.8 A (AC100 - 125 V) or
AC200 - 240 V 50/60 Hz 0.5 A (AC200 - 240 V)
Power Consumption
Scanning
40 W or less / 35 W or less
Standby
8 W or less
Sleep
3.0 W or less
Power OFF
0.5 W or less
(While the AC adaptor is connected to the AC outlet)
Operating Environment
5 °C to 35 °C (41 °F to 95 °F), 20% to 80% RH
Storage Environment
-10°C to 50 °C (14 °F to 122 °F), 8% to 75% RH
Accessories

• Quick installation guide
• Power cord
• USB cable
• Feed tray
• Mixed batch card guide

CD-ROM
• Device driver software
• ISIS driver software
• TWAIN driver software
• Image Capture Plus application software
• User Utility software
• Scan Button Setting Tool
• Operating manual
• Control sheet
etc.

Consumables
Roller Exchange Kit
KV-SS061
Options
Carrier Sheet
KV-SS076
Roller cleaning paper
KV-SS03
Flatbed Scanner
KV-SS081

*1 The scanning speed differs depending on the host computer, the operating system, the application, the measuring method, the quantity of data in the image, and the paper type. The scanning speed is as determined by Panasonic methods of speed measurement.
*2 Though other paper size can be specified, it cannot be guaranteed.
*3 The maximum size that can be scanned varies depending on the resolution.
*4 "Weight in ponds" of paper represents the weight of 500 sheets (432 x 559 mm /17 x 22 in.).
*5 The power requirement differs depending on the country/area.

• ISIS is a registered trademark or trademark of EMC Corporation in the United States and other countries.
• ENERGY STAR and the ENERGY STAR certification marks are registered US marks.
• All product names are trademarks or registered trademarks of their respective holders.
• Specifications are subject to change without notice.
• Dimensions and weights are approximate.
