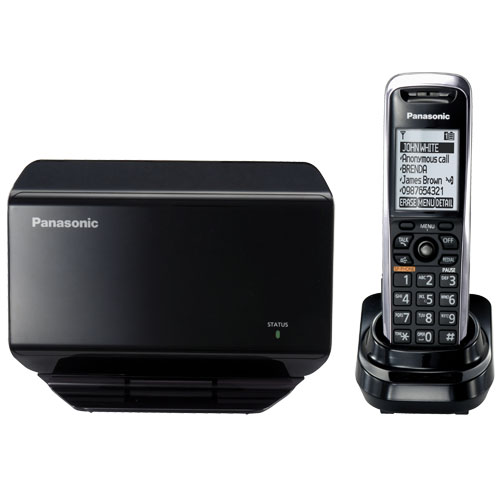

KX-TGP500 Panasonic


SIP IP Expandable Cordless Phone System with Location-Free Base Station and 1 Cordless Handset



Panasonic bežični SIP telefon KX-TGP500

Bežični SIP telefon sa bazom koju je moguće montirati na zid, i bežičnom slušalicom sa nezavisnim punjačem

  • 100 memorisjkih stanica za telefonski imenik / 10 poslednje biranih brojeva
  • 2.1” veliki LCD ekran sa belim pozadinskim svetlom na slušalici
  • Podrška za tri istovremene mrežne konverzacije
  • Kompatibilan sa Asterisk, Broadsoft i Yeastar sistemima
  • Mala potrošnja u stanju mirovanja
  • Programibilne grupe poziva "ring groups"
  • Do 6 bežičnih slušalica KX-TPA50
  • Do 8 SIP registracija
  • Lokalna ili mrežna interna komunikacija
  • HD Voice (G.722) na DECT radio
  • 10 dana na "stand-by" i 5 sati razgovora
  • DID na svakoj bežičnoj slušalici
  • Mogućnost nazidne montaže
  • "Hands-free speaker phone" na bežičnoj slušalici
  • "Plug and Play" konfiguracija



Base Unit and Cordless Handset

  • VoIP Support : .
  • IETF SIP version 2(RFC3261 ands companion RFCs): Yes
  • BroadWorks R15 / BroadSoft: Yes
  • Asterisk: Yes*1 (*1 Business Edition C.x, Switch Vox Ver.4.0-4.5)
  • Voice Codec : .
  • G.711a-law / G.711µ-law / G.722(wideband) / G.729a / G.726(32K): Yes
  • Network Interface : .
  • 10 / 100 base-T auto MDI / MDIX Ethernet LAN port: 1
  • Provisioning : .
  • HTTP / HTTPS / FTP / TFTP and local / remote WEB configration: Yes
  • QoS Support : .
  • DSCP: Yes
  • Static VLAN: Yes
  • TOS: Yes
  • Keys and Indications : .
  • Menu driven user interface: Yes
  • Line Status: Yes
  • Direct handset call buttons: Yes
  • Message waiting indicator on the base unit: Yes
  • RF-System : ,
  • US-DECT 1.92GHz - 1.93GHz (for USA and Canada): Yes
  • EU-DECT 1.88GHz - 1.90GHz: Yes
  • Phone Features : .
  • Multiple Handset: 6
  • Multiple registration support: 8
  • Simultaneous voice calls: 3
  • 2.5mm Headset Jack: Yes*2 (*2 KX-TGP500 : on cordless handset.)
  • Grouping Handset : Handset select for receiving call: Yes
  • Handset and Number select for making call: Yes
  • Redial: Yes
  • Do Not Disturb: Yes
  • Anonymous Call (CLIR): Yes
  • Anonymous Call Rejection: Yes
  • Busy Lamp Field (BLF) for handsets: Yes
  • Calling party name and munber presentation (CLIP, CNIP): Yes
  • Call Rejection: Yes
  • DTMF dialing during call: Yes
  • 3-Party Conferencing: Yes
  • Call Transfer: Yes
  • One touch button call Transfer: Yes
  • Call Hold: Yes
  • Call Forward Unconditional/User Busy/No Answer: Yes
  • Call Waiting: Yes
  • Distinctive Ringing: Yes
  • Ringtone Selection: Yes

Additional Cordless Handset

Additional Cordless Handset Up to 6 per KX-TGP550/500
*Message Waiting Lamp
*10 last number dialed
*Integrated full duplex speakerphone
*2.1" Large back lit LCD
*5 hours Talk Time, 10 days Standby





Responding to IP-Centrex/Hosted PBX Services and Asterisk / Switchvox*2

This system is for[IP-Centrex/Hosted PBX Services]. Conveniently, one ethernet drop will allow you to support up to 6 additional handsets with only an electrical outlet nearby. This system also enables you to arrange convenient services provided by the carrier such as Call Forward, VoiceMail etc. Also, the SIP Cordless Phone system can be used as a wireless terminal for your larger SIP deployments.


*2 "Digium" ,"Asterisk" , " Switchvox" and the Digium and Asterisk logos are registered trademarks or trademarks of Digium, Inc.


Support for 3 simultaneous network conversations

The SIP Cordless Phone System allows three simultanous calls while handling all the intercom and internal calls without utilizing any bandwidth.


G.711a-law / G.711µ-law / G.722(wideband) / G.729a / G.726(32K) used as CODEC

This system uses G.711a-law / G.711µ-law / G.722(wideband) / G.729a / G.726(32K) codecs. Making the most use of its bandwidth, these codecs are designed for efficient data communication.


DECT radio technology

DECT Cordless Handset Technology is used as the handset of its sub-phone. Unlikebefore,there is no need for you to connect a LAN cable with every yourtelephone.Worldwide-reputed Panasonic's handset, which has a largewhite LCD, Calling Status Display Function, etc., is user-friendlydesigned.


Up to 6 DECT cordless handsets

The SIP Cordless Phone System expands up to 6 additional TPA50 additonal handsets.


Supporting for up to 8 SIP registrations (e.g. up to 8 Direct Inward Dialing Lines or Extensions)

SIP Cordless Phone System allows you to have up to eight (8) phonenumbers.You can set up in several ways: for example, you can set thephone number for each handset. Or you can group the handsets bygroup setting and restrict the incoming calls receivals to the specifichandsets. Handsets if you need them. Please contact us for details.


  • Support for 3 simultaneous network conversations
  • CODEC: G.711a-law / G.711µ-law / G.722(wideband) / G.729a / G.726(32K)
  • DECT radio technology
  • 2.1" Large LCD with white backlight on cordless handset
  • Up to 6 DECT cordless handsets
  • Support for up to 8 SIP registrations (e.g. up to 8 DID lines or extensions)
  • Hands-free speaker phone on cordless handset
  • Wall mountable base unit


UPUTSTVO NA SRPSKOM JEZIKU KX-TGP500
KATALOG Panasonic KX-TGP500

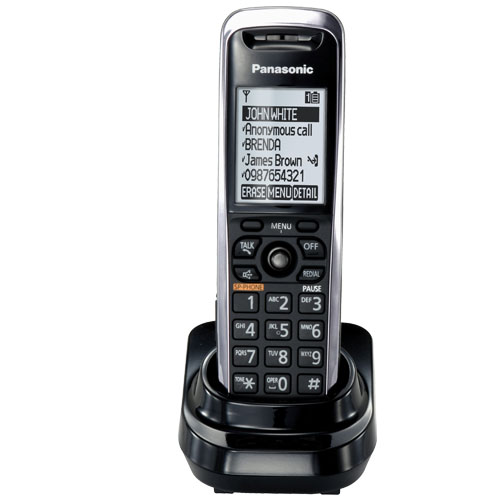

Additional Cordless Handset Panasonic KX-TPA50

Additional Cordless Handset Up to 6 per KX-TGP550/500
*Message Waiting Lamp
*10 last number dialed
*Integrated full duplex speakerphone
*2.1" Large back lit LCD
*5 hours Talk Time, 10 days Standby
